[MakeLV] thin SPDT tact switch

[Josiah Ritchie]

Yeah, that's not really made for modding. Have you considered replacing the
whole unit instead of modifying it? A 3D print job or some sugru could
result is some nice  results to drape some leather over in such a way that
the switches could be invisible under the leather. This looks like a neat
project. What are the buttons going to accomplish and how are you going to
connect them to whatever you are controlling?

JSR/


On Sun, Nov 4, 2012 at 2:20 PM, Chris Tonkinson <cmtonkinson at gmail.com>wrote:

> That's actually not a bad alternative, but I'm not sure it would be
> practical for me. Maybe context would help.
>

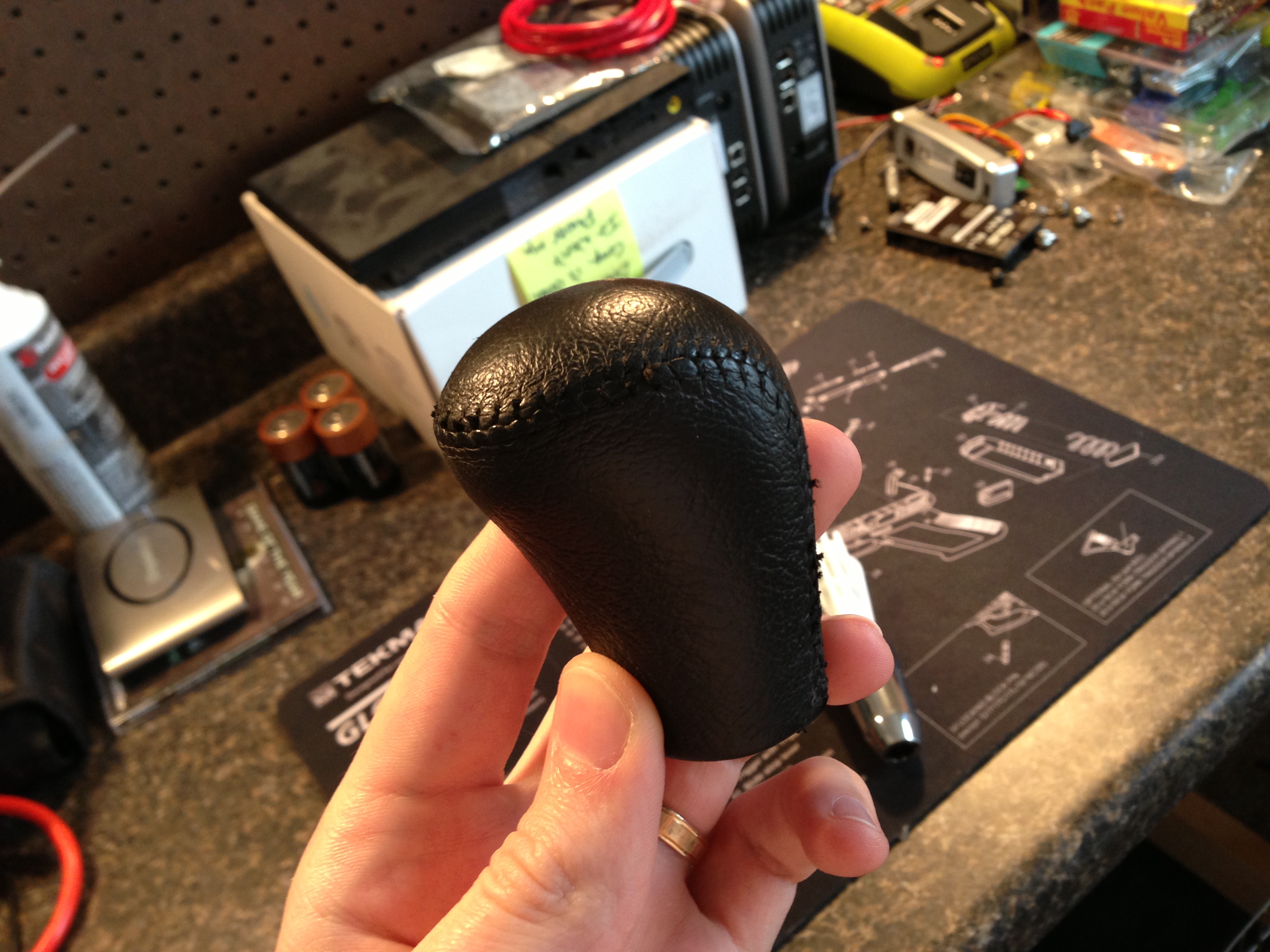

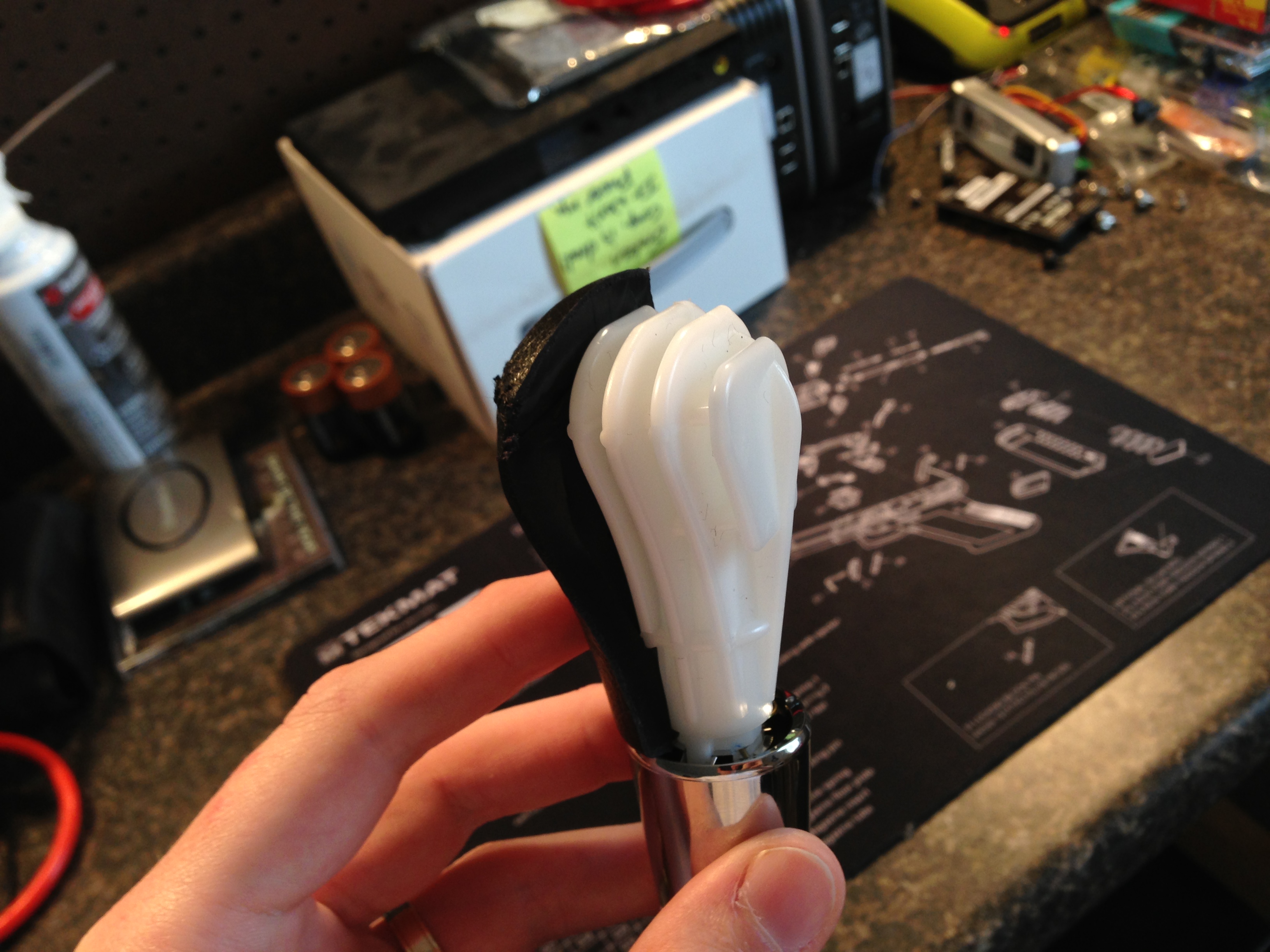

> What I'm trying to do is add two buttons to the shifter in my car. I got a
> hold of a spare just to dissect and prototype on, but as you can see from
> the photos (attached below), the
> stitched-leather-on-molded-rubber-around-plastic-skeleton-frame won't lend
> itself willingly to much invasive surgery. Originally I'd planned on simply
> dissasembling the unit, and installing two simple tact switches from the
> inside out. After looking at how it's put together though, I'm pretty
> convinced I'll need an all-external solution. I had to literally attack
> this sucker with sharp pointy things to get it apart in the first place.
>
> Other ideas:
>
>    - A single SPDT momentary rocker switch (but again, it would have to
>    be pretty thin)
>    - A pair of small capacitive touch surfaces. Not ideal (because I
>    couldn't leave my thumb on them without actuating them) but still a
>    possibility.
>    - I could even probably get away with some sort of dongle strapped to
>    the fore of the shifter.
>
>
> [image: Inline image 2]
>
> [image: Inline image 1]
>
>
>
> Chris Tonkinson
> 610.425.7807
>
> *        "Nescire autem quid ante quam natus sis acciderit, id est semper
> esse puerum."*
>         -Cicero
>
>
>
> On Sun, Nov 4, 2012 at 10:41 AM, Josiah Ritchie <josiah.ritchie at gmail.com>wrote:
>
>> I know we're talking major change to the project, but could a flex sensor
>> fit the need? It is thin.
>>
>> Here is one:
>> https://www.sparkfun.com/products/8606
>>
>> JSR /
>> On Nov 4, 2012 12:08 AM, "Chris Tonkinson" <cmtonkinson at gmail.com> wrote:
>>
>>> Hi all,
>>>
>>>   I'm looking for a pretty particular type of SPDT tact switch, and I've
>>> been driving myself nuts looking at parts catalogs, thus far to no avail.
>>>
>>>   Geometrically, I'm looking for something "small" and "flat." What's
>>> that mean? I'm guessing approximately 3mm x 12mm x 12mm (1/8th in x 1/2 in
>>> x 1/2 in). Roughly. It'll be a switch for the thumb, if that helps at all.
>>>
>>>   Any ideas? Catalogs I may not have checked? Part "description"
>>> keywords I may not have searched for? Stores (online or off) to visit?
>>>
>>> Thanks!
>>> -Chris
>>>
>>> Chris Tonkinson
>>> 610.425.7807
>>>
>>> *        "Nescire autem quid ante quam natus sis acciderit, id est
>>> semper esse puerum."*
>>>         -Cicero
>>>
>>>
